PARAMETERS

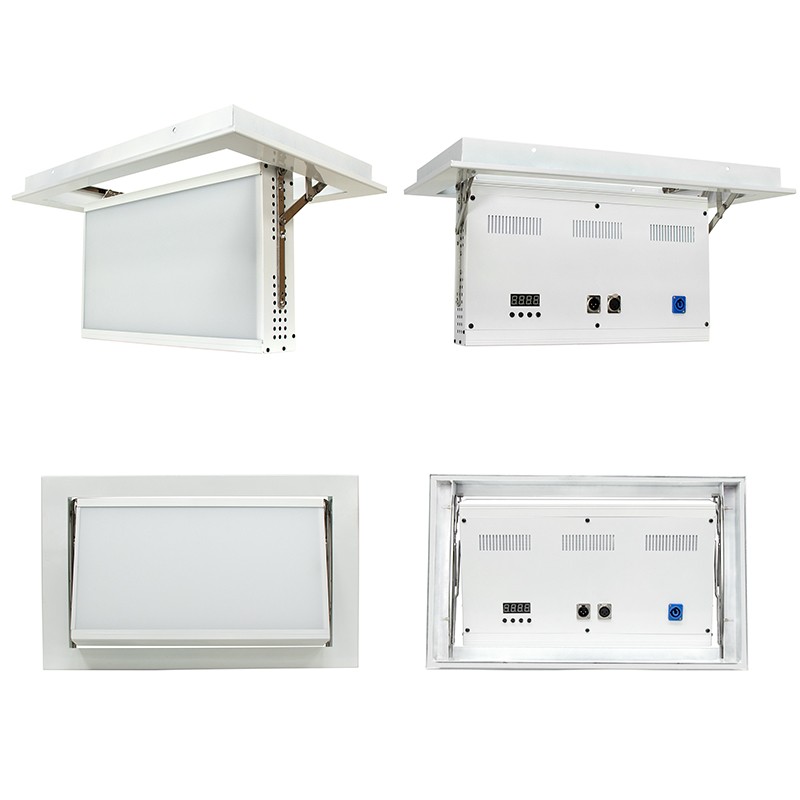

   Manual Flip Down LED Panel Light

Model: LED-S100X

Power:: 100W

Voltage: AC110-240V 50 / 60Hz

Light Source: 288 imported LED lamp beads

CCT: 5,600 K

Color rendering index (CRI): ≥95 Ra

DIM: 0~100%

Dimming / control mode: body button + DM X 512 light console

Number of channels: 1

Flip angle: 0° -90°, manually flipped

Lifespan: 50,000 hours

Cooling system: aluminum profile + lamp body heat dissipation hole natural heat dissipation, no fan

Signal link: three-core signal card head input / output hand in hand

Operation: Digital display of the tube adjustment address code

Light body material: steel baking paint

Color: white

Light body shape: a rectangle

Size: 580 * 365 * 80mm

Luminescence area: 570 * 340mm

Net Weight: 4.55kg

Cut-out size: 463 * 268mm

Installation: embedded installation, light body and outer frame split, surrounding Frame fixed installation and pendant installation

Application: conference room, recording classroom, multi-function hall, auditorium, etc
