PARAMETERS

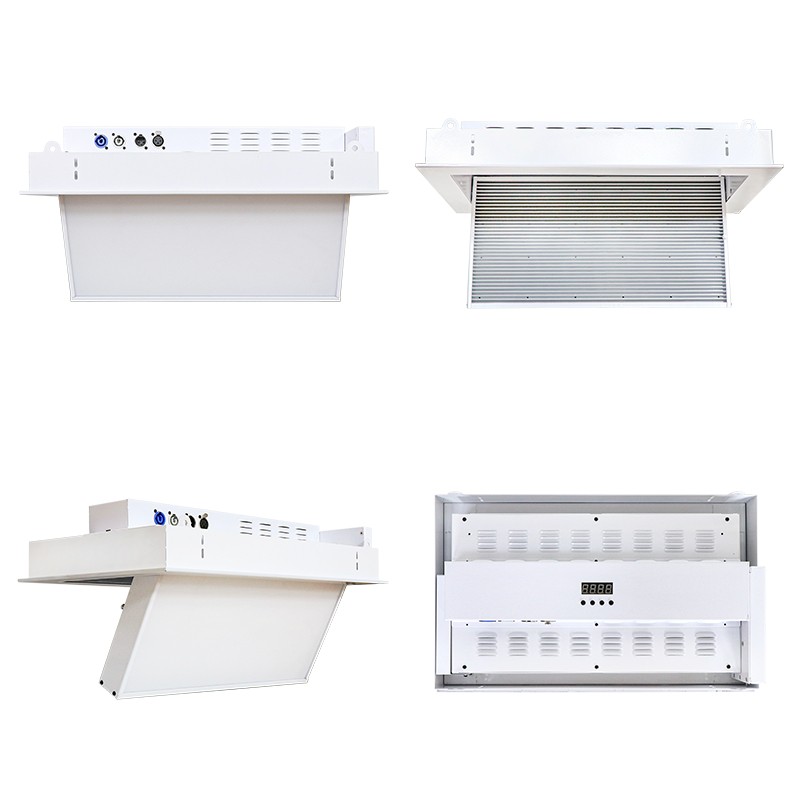

Motorized Flip Down LED Panel Light

Model: LED-D100

Power: 200W

Voltage: AC 110-240V 50 / 60Hz

Light Source: 512PCS imported LED light beads

CCT: 5,600 K

Color rendering index (CRI): ≥95 Ra

DIM: 0~100%

Dimming / control mode: body button + DM X 512 light console

Number of channels: 5

Flip angle: 0° -90°, electric flip

Lifespan: 50,000 hours

Cooling system: high thermal conductivity pure aluminum forming radiator natural heat dissipation

Signal link: three-core signal card head input / output hand in hand

Power link: Power Con input / output

Operation: Digital display of the tube adjustment address code

Light body material: steel baking paint

Color: white

Luminescence area: 470 * 235mm

Size: 580 * 360 * 120mm

Net Weight: 11.6kg

CUT-out size: 560 * 340mm

Installation: embedded installation, light body and outer frame split, surrounding Frame fixed installation and pendant installation

Application: conference room, recording classroom, multi-function hall, auditorium, etc
