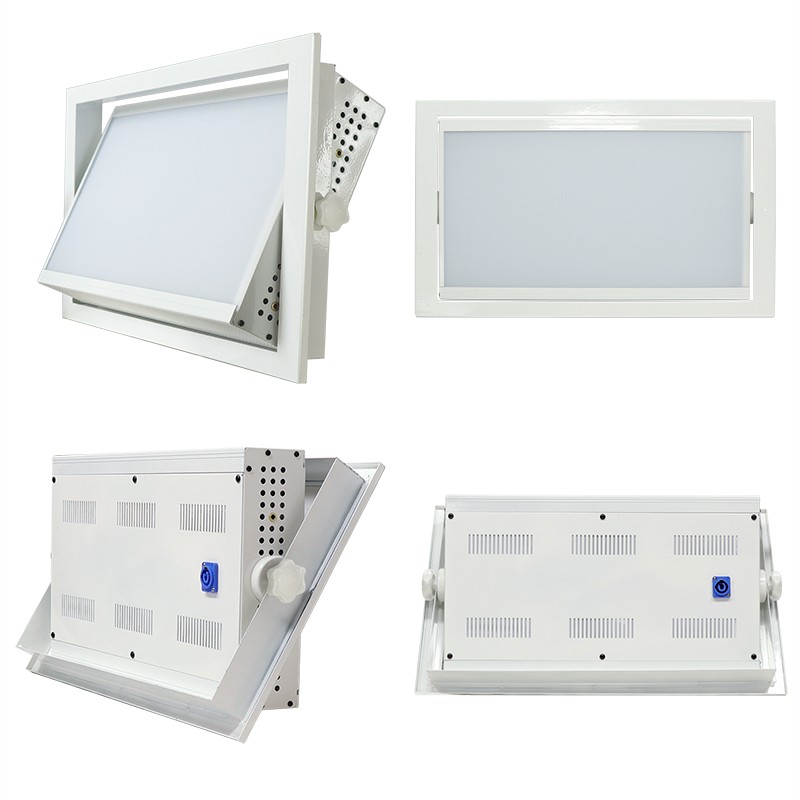

Intermediate Shaft Motorized Flip Down LED Panel Light
Model: LED–Z100
Power:: 100W
Voltage: AC110–240V 50 / 60Hz
Light Source: 288 imported LED lamp beads
CCT: 5,600 K
Color rendering index (CRI): ≥95 Ra
DIM: 0~100%
Dimming / control mode: body button + DM X 512 light console
Number of channels: 1
Flip angle: 0° 90°, manually flipped
Lifespan: 50,000 hours
Cooling System: no fan for natural heat dissipation
Signal link: threecore signal card head input / output hand in hand
Power link: Power Con input / output
Operation: Digital display of the tube adjustment address code
Light body material: steel baking paint
Color: white
Size: 537 * 323 * 77mm
Net Weight: 3.65kg
Cutout size: 532 * 318mm
Installation: embedded installation, lamp body and outer frame split, surrounding Frame fixed installation and pendant installation
Application: conference room, recording classroom, multifunction hall, auditorium, etc
|
