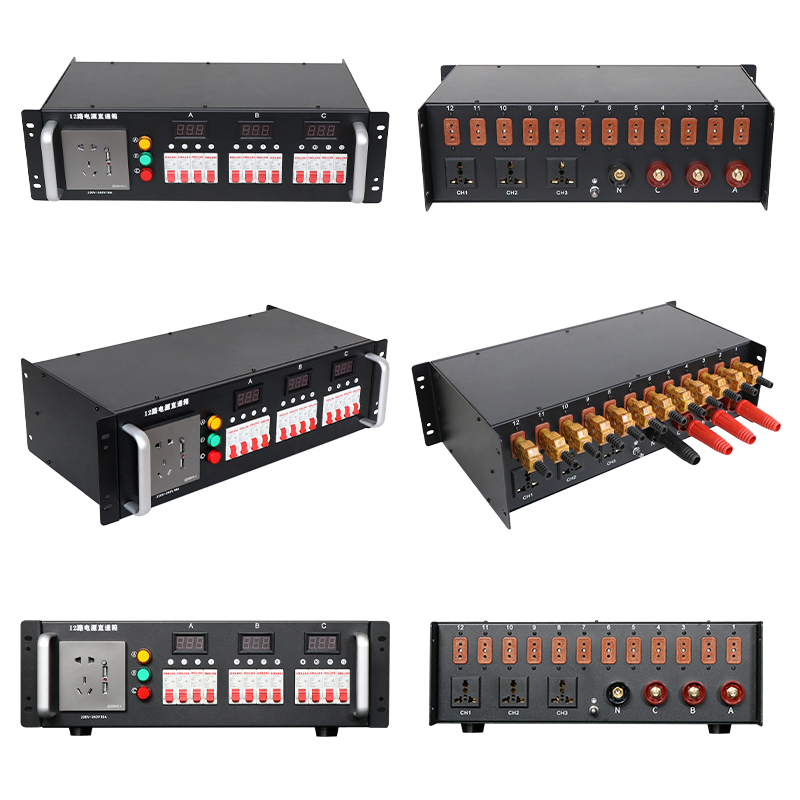

Model: ZTX-G12
Power supply: 100-200V 50-60HZ
Power supply: 380V voltage input, three-phase five-wire AC 380V±10%
Frequency: 50HZ± 5%
Power: 12CH 4KW
Work indicator: A.B.C three-phase work indicator
Socket: 1 dual USB interface five-pin socket + 3 universal three-pin sockets
Switch: Delixi 20A air switch
Voltage display: Digital voltage display
Handle: With handle
Wiring mode: three-phase five-wire universal plug
Grounding: The chassis backplane has reliable grounding bolts
Power loss: 5W for the control part ≤ the machine
Installation: Install the cabinet directly/place it on the desktop
Working environment: well ventilated, no large amount of smoke
Size: 480*270*150mm
Product weight: 5.9kg
Product list: 4 quick plugs, 12 pcs 10A bakelite plugs
Applicable scenarios: studio, conference room, theater, multi-function hall control room
Features:
1. Please connect the required power supply equipment before use, this product can be directly connected to 12 4KW conventional lamps; 12 channels of individual control;
2. Then connect AC380V three-phase electricity, pay attention to the live wire (A.B.C) and the neutral line (N) can not be reversed; The grounding wire (PE) should be well grounded; At this time, the panel indicator lights up, and the air switch hits the ON state; At this time, the connected lamp should light up.
3. Each channel adopts 2.5 square national standard RVV single-core copper wire output, each wire is crimped with a professional line card, and the external heat shrinkable tube is packaged, which greatly enhances the safety and durability between circuits
