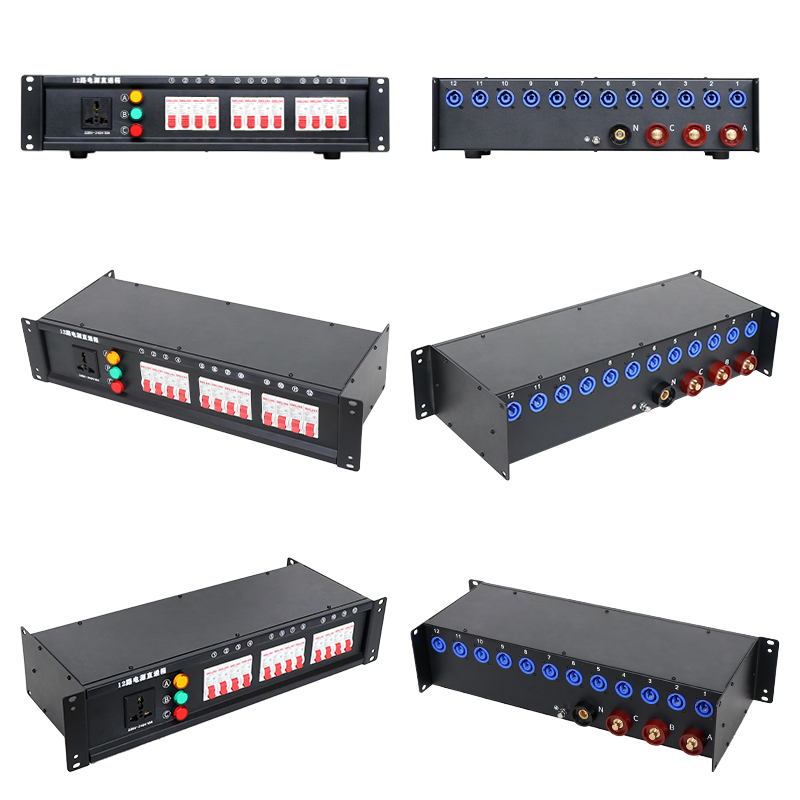

Model: ZTX-H12
Power supply: 100-200V 50-60 Hz
Power supply: 380V voltage input, three-phase five-wire system AC 380V± 10%
Frequency: 50 Hz ± 5%
Power: 12 channels, 4KW
Work indicator light: A.B. C. The 3-phase working indicator light
Socket: 1 universal three-hole socket
Switch: The Delixi 20A air switch
Wiring mode: three-phase five-wire universal plug
Ground: chassis backplane with reliable grounding bolts
Power loss: 5W of the internal control part
Installation: install the cabinet directly / put it on the desktop
Working environment: well ventilated, without a lot of smoke and dust
Dimensions: 486mm X 180mm X 110mm
Product weight: 4. 55kg
Product list: 4 quick connectors, 1216A self-locked aviation power plugs
Suitable scene: studio, conference room, theater, multi-function hall control room
Features:
1. Please connect the required power supply equipment before use, this product can be directly connected to 12 4KW conventional lamps; 12 channels of individual control;
2. Then connect AC380V three-phase electricity, pay attention to the live wire (A.B.C) and the neutral line (N) can not be reversed; The grounding wire (PE) should be well grounded; At this time, the panel indicator lights up, and the air switch hits the ON state; At this time, the connected lamp should light up
3. Each channel adopts 2.5 square national standard RVV single-core copper wire output, each wire is crimped with a professional line card, and the external heat shrinkable tube is packaged, which greatly enhances the safety and durability between circuits
