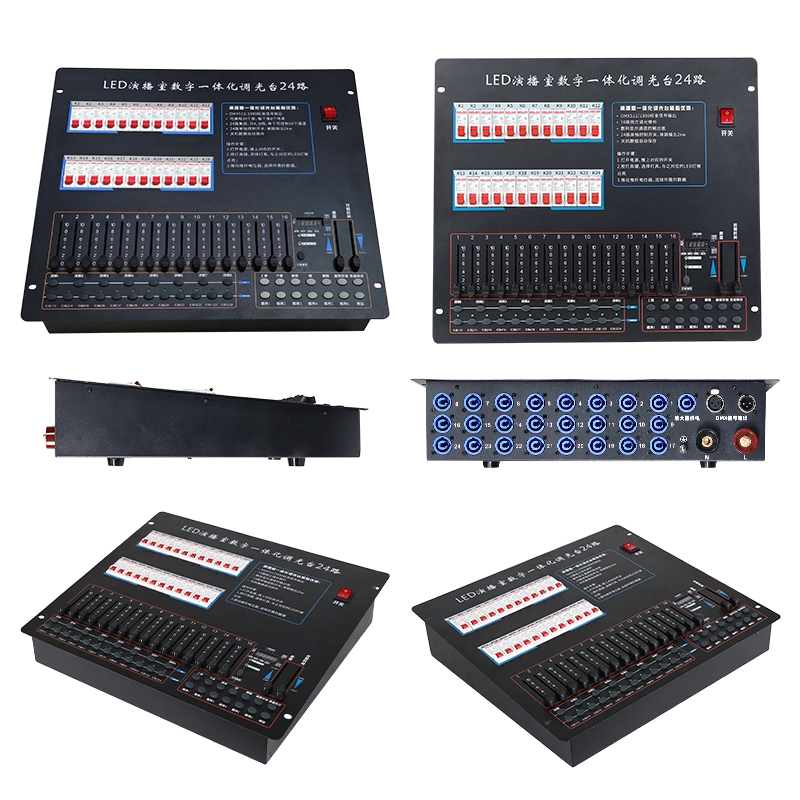

24-road Integrated Light Control Console
Model: KT-Y2400
Input AC voltage: 220V ± 25%, 50 Hz,K1-K24 output AC voltage 0-220V smooth continuous adjustable (when the power supply voltage is 220V)(16 independent pusher, 1-384 output is DM X 512 digital signal)
Output interface: one 16A aviation insulated socket per circuit;
Output power: 2KW per circuit;
Working time: 8 hours in a well-ventilated environment;
The insulation of the whole machine:≥10M
Dimming channel: 384 / 512
Centralized control channel: 12
Scene storage: 30
Page storage: 8 * 30
Scene gradient time: automatic 0.1 seconds to 10 seconds, but also manually
Light walking speed: 0.1-10S / step
Output signal format: DM X 512 / 1990
Power supply and frequency: AC220V± 10% / 50 Hz
Power consumption of the whole machine: less than 25W operating temperature: 0-50℃
