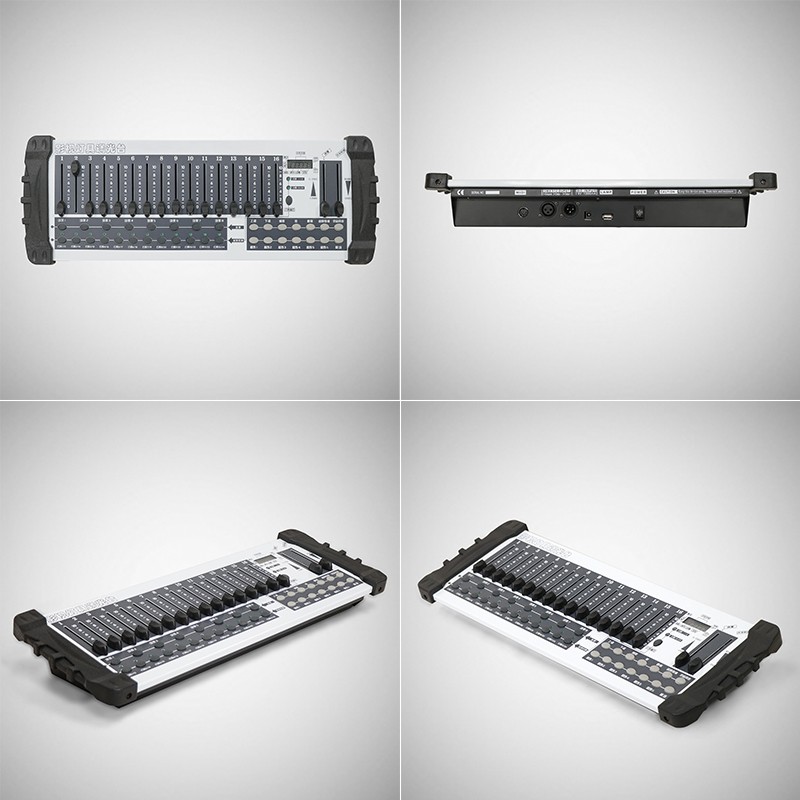

384 Channel Light/Fog DMX Lighting Controller with MIDI Control
Model: KT-16
Voltage: 220V / 50Hz
Controlled lights: 24 sets of 16-channel computer lights can be controlled
DMX signal output connector: XLR-D3F
USB interface: LED interface
Power supply input: DC9V 1000mA
Signal output: DM X 512 / 1990 signal output
Control channels: 380 control channels
BANK / SCENES: 30 BANKS, 8 programmable SCENES for each BANK
Output adjustment rerun: 16 tuners adjust the output size
Sound trigger: built-in MIC head to provide sound trigger
Automatic trigger: trigger time by TAP SYNC key or SPEED potentiometer
MIDI control: at the MIDI interface, the MIDI signal control can be used at any time
Display Screen: a 4-bit digital Display Screen
Dark field function: can be controlled by manual or MIDI
CHASES Function: CHASES Programming and movement function, can be used for manual or MIDI remote control
Output delay: FADE TIME potentiometer mediation delay time
Working environment: no corrosive, combustible gas, naturally ventilated place
Restore factory: data
Color: black + gray
Overall dimension: 525 * 188m * 735mm
Weight: 2.65kg
Certification: CE certification, ROHS certification
Applicable to: TV station, school, government enterprises, video conference room, studio lights, conference room lighting power control and signal dimming control
384 Channel Light/Fog DMX Lighting Controller with MIDI Control. Controls 24 intelligent lights of up to 16 channels.
30 Banks of 8 Programmable Scenes. 384 DMX Channels of Control. 6 Programmable Chases of 240 Scenes.
Record Up to 6 Chases With Fade Time and Speeds.
16 Sliders for Direct Control of Channels.
MIDI Control Over Banks, Chases and Blackout.
Built-in Microphone for Music Mode.
Automatic Mode Program Controlled by Speed and Fade Time Sliders.
Blackout Master Button.
Reversible DMX Channels Allows Fixture to React Opposite to Others in a Chase.
Manual Override Allows You to Grab Any Fixture on the Fly.
Built-in Microphone for Music Triggering.
Midi Control Over Banks, Chases, and Blackout. Power Failure Memory.
4-Bit LED Display.
